ESP8266 CH340G Type-C
৳ 350 ৳ 320
Product Code: PKB 2874
Dial to order by phone
01683623013
| Inside Dhaka | ৳ 60 |
| Outside Dhaka | ৳ 150 |
| Pickup From Store | ৳ 0 |
| Inside Mirpur and same Day Delivery | ৳ 100 |
01611526238
| China Product | |
| 100% Pay Cash on Delivery Avilable | |
| Delivery within: 2-3 business days |

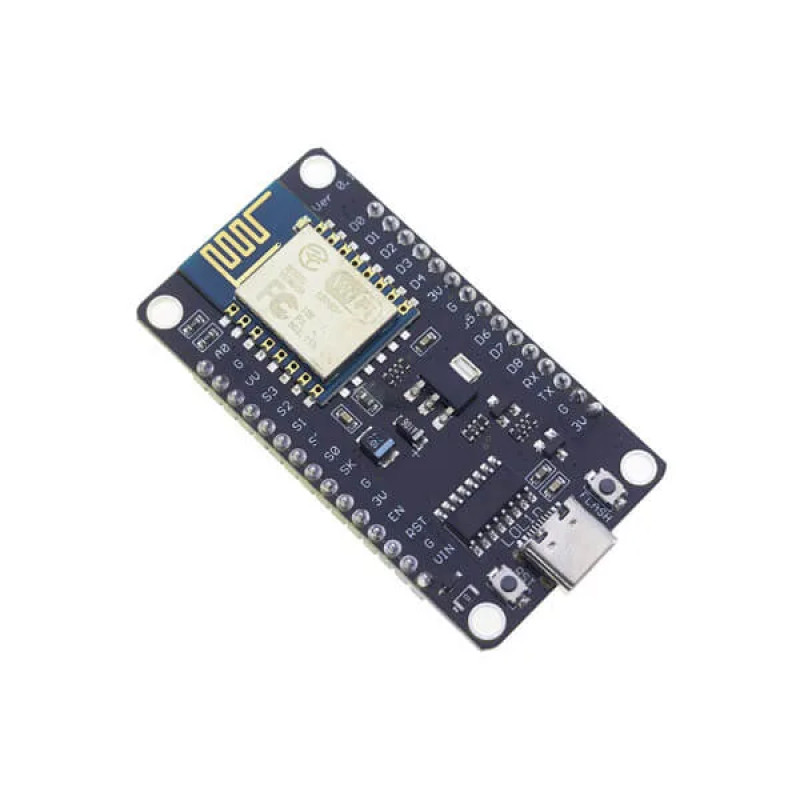

NodeMCU V3 ESP8266 WiFi Board (Type-C, CH340G): Start Your IoT Project Today
The NodeMCU V3 is a low-cost, WiFi-enabled development board built around the ESP8266 chip. This version comes with a modern Type-C USB port and the CH340G USB-to-serial chip, so you can upload code easily with any common Type-C cable. It works with Arduino IDE, MicroPython and Lua, which makes it a top choice for EEE, CSE and Mechatronics students building IoT, home automation and monitoring projects in Bangladesh.
Key Features
- ESP8266 (ESP-12E) module with built-in 2.4GHz WiFi
- Type-C USB port for power and programming
- CH340G USB-to-serial chip for stable code upload
- 30-pin layout with GPIO, ADC, I2C, SPI, UART and PWM support
- Programmable via Arduino IDE, MicroPython and NodeMCU Lua
- Onboard reset and flash buttons, plus user LED
- Breadboard friendly design
Specifications
- Chip: ESP8266 (ESP-12E)
- USB Chip: CH340G
- USB Port: Type-C
- Operating Voltage: 3.3V (USB 5V input via onboard regulator)
- GPIO Logic Level: 3.3V
- Flash Memory: 4MB
- WiFi: 802.11 b/g/n, 2.4GHz
- Analog Input: 1 channel (A0, 0-3.3V range on most boards)
- Pins: 30 pin
Applications / Project Ideas
- IoT flood monitoring and alert system
- WiFi smart home and relay control
- Weather station and sensor data logger
- Blynk, Firebase and ThingSpeak projects
- WiFi attendance and RFID systems
- Remote control robot over WiFi
Important Usage Note
GPIO pins work at 3.3V logic, so do not connect 5V signals directly. Install the CH340 driver on Windows if your PC does not detect the board.
Package Includes
- 1 x NodeMCU V3 ESP8266 CH340G Type-C Board
Why Buy from Project Kits BD?
Genuine, tested components, student-friendly price and fast delivery across Bangladesh. Wiring ba code e help lagle amader team ache.
