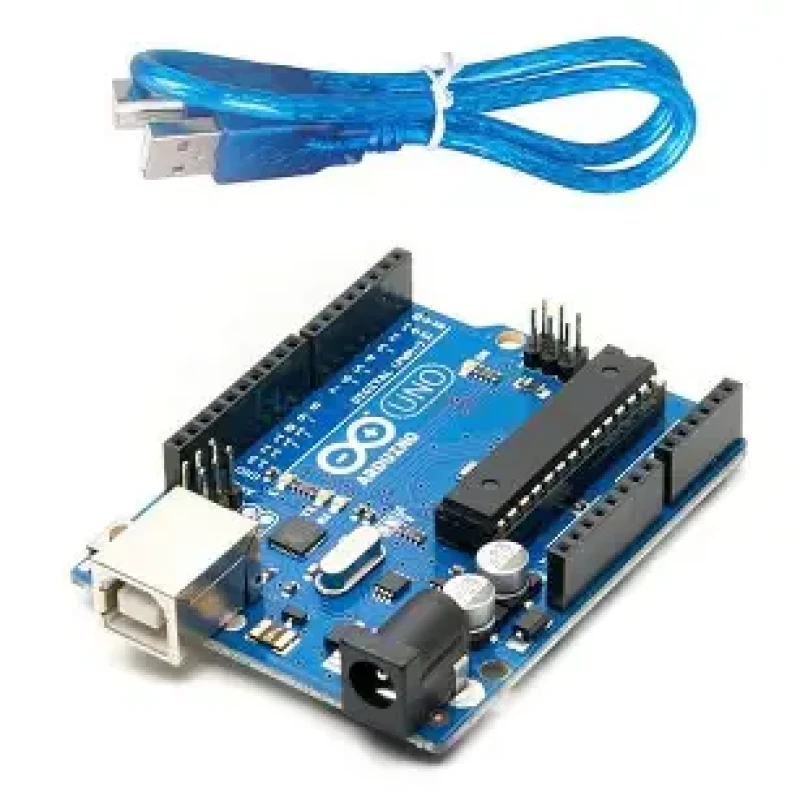

Arduino Uno R3 with USB Cable: The Best Board to Start Electronics and Coding
The Arduino Uno R3 is the most popular microcontroller board in the world, built around the ATmega328P chip. It comes with a USB cable, so you can plug it into your PC and upload your first program right away. Easy to learn, with a huge library and tutorial support, it is the first choice for EEE, CSE and Mechatronics students in Bangladesh building semester, final year and hobby projects.
Key Features
- ATmega328P microcontroller, 16 MHz clock
- 14 digital I/O pins (6 PWM outputs)
- 6 analog input pins
- 32KB flash memory, 2KB SRAM, 1KB EEPROM
- USB-B port for power and programming, plus DC jack
- Programmable with Arduino IDE
- Works with thousands of sensors, modules and Arduino shields
- Reset button and onboard LED (pin 13)
- USB cable included, ready to use out of the box
Specifications
- Microcontroller: ATmega328P
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limit): 6-20V
- Digital I/O Pins: 14 (6 PWM)
- Analog Input Pins: 6
- DC Current per I/O Pin: 20 mA
- Flash Memory: 32KB (0.5KB used by bootloader)
- SRAM: 2KB
- EEPROM: 1KB
- Clock Speed: 16 MHz
- USB Chip: [ATmega16U2 / CH340G]
- Dimensions: approx. 68.6 x 53.4 mm
Applications / Project Ideas
- LED blinking, traffic light and beginner circuits
- Line follower and obstacle avoiding robots
- Home automation with relay modules
- Sensor monitoring (temperature, distance, gas)
- RFID attendance and door lock systems
- Learning embedded systems and C/C++ programming
Important Usage Note
Use a 7-12V supply through the DC jack for stable operation, and do not draw more than 20 mA from a single I/O pin.
Package Includes
- 1 x Arduino Uno R3 Board
- 1 x USB Cable (Type A to Type B)
Why Buy from Project Kits BD?
Genuine, tested components, student-friendly price and fast delivery across Bangladesh. Wiring ba code e help lagle amader team ache.
