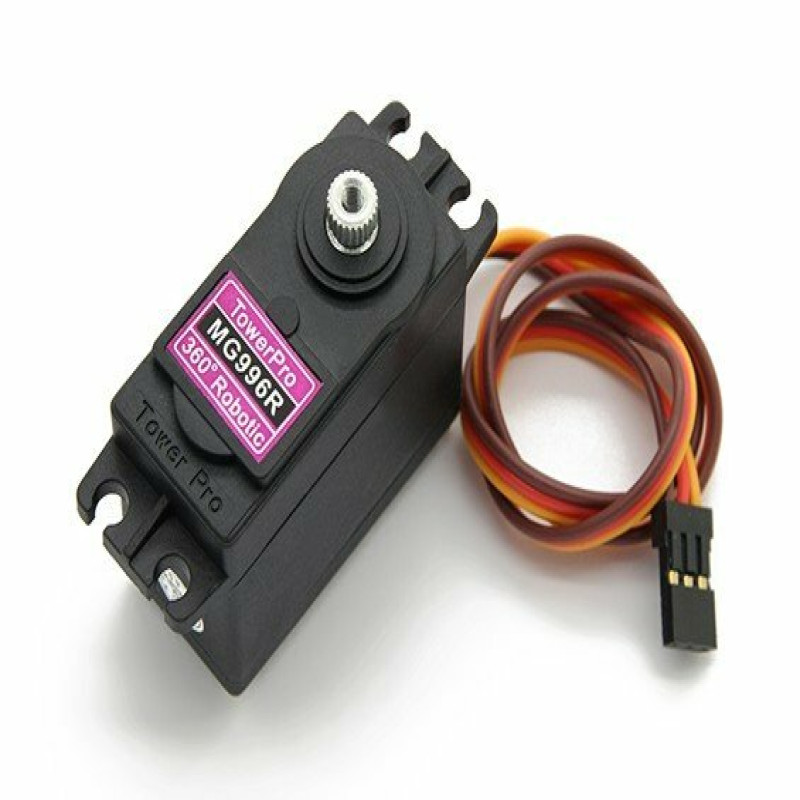

MG996 Servo Motor (Plastic & Metal) mixed gear
৳ 420 ৳ 320
Product Code: PKB 247
Dial to order by phone
01683623013
| Inside Dhaka | ৳ 60 |
| Outside Dhaka | ৳ 150 |
| Pickup From Store | ৳ 0 |
| Inside Mirpur and same Day Delivery | ৳ 100 |
01611526238
| China Product | |
| 100% Pay Cash on Delivery Avilable | |
| Delivery within: 2-3 business days |
Specifications
- 180° Rotation
- continuous 180° rotation in both directions
- Weight: 55 g
- Dimension: 40.7 x 19.7 x 42.9 mm approx.
- Stall torque: 9.4 kgf/cm at 4.8V ), 11 kgf/cm at 6V
- Operating speed: 0.17 s/60º at 4.8V, 0.14 s/60º at 6V
- Operating voltage: 4.8V – 7.2V
- Running Current 500 mA – 900 mA (6V)
- Stall Current 2.5A at 6V
- Dead band width: 5 µs
- Stable and shock proof double ball bearing design
- Gear Type: Metal Gears + Plastic Gear Mixed
- Servo Plug: JR (Fits JR and Futaba)
- Connector Wire: Heavy Duty, 11.81″ (300mm)
- Temperature range: 0 ºC – 55 ºC
