28BYJ-48 DC5V Stepper Motor With Driver
৳ 170 ৳ 145
Product Code: pkb1809
Dial to order by phone
01683623013
| Inside Dhaka | ৳ 60 |
| Outside Dhaka | ৳ 150 |
| Pickup From Store | ৳ 0 |
| Inside Mirpur and same Day Delivery | ৳ 100 |
01611526238
| China Product | |
| 100% Pay Cash on Delivery Avilable | |
| Delivery within: 2-3 business days |

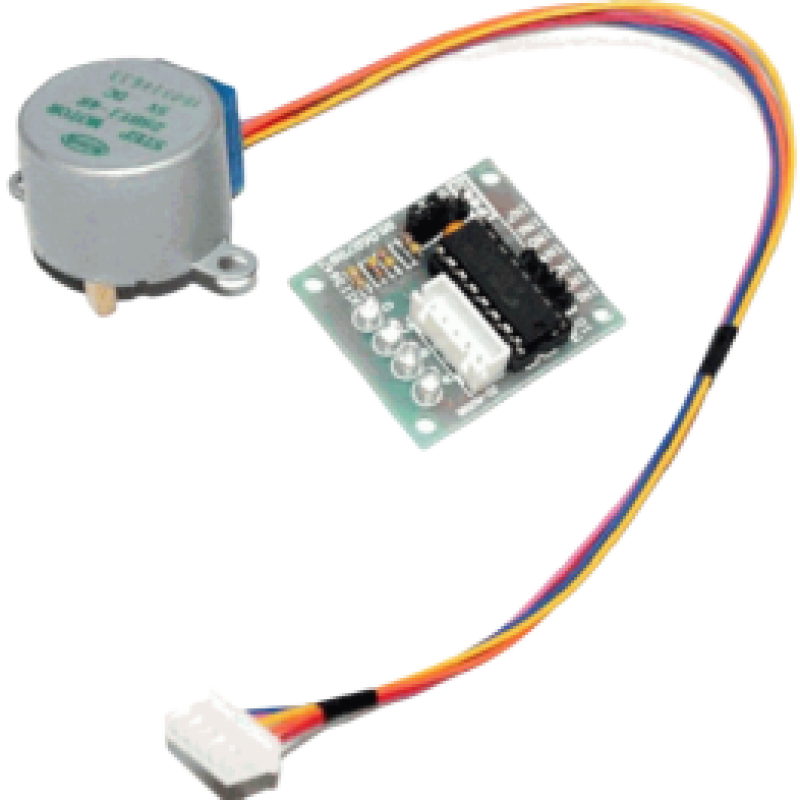

The 28BYJ-48 is a 5V geared stepper motor and driver board at an incredibly low price. The stepper motor has a step angle of 5.625 degrees (64 steps per revolution) with a 64:1 ratio gearbox giving an effective 4096 pulse per revolution. See the datasheet below for the motor specification. The driver is a simple ULN2003 transistor driver for direct connection to your micro controller such as an Arduino or clone. The driver PCB is 32x35x12mm, the motor is 28mm dia x 20mm high excuding the 5mm dia x 8mm long shaft.
